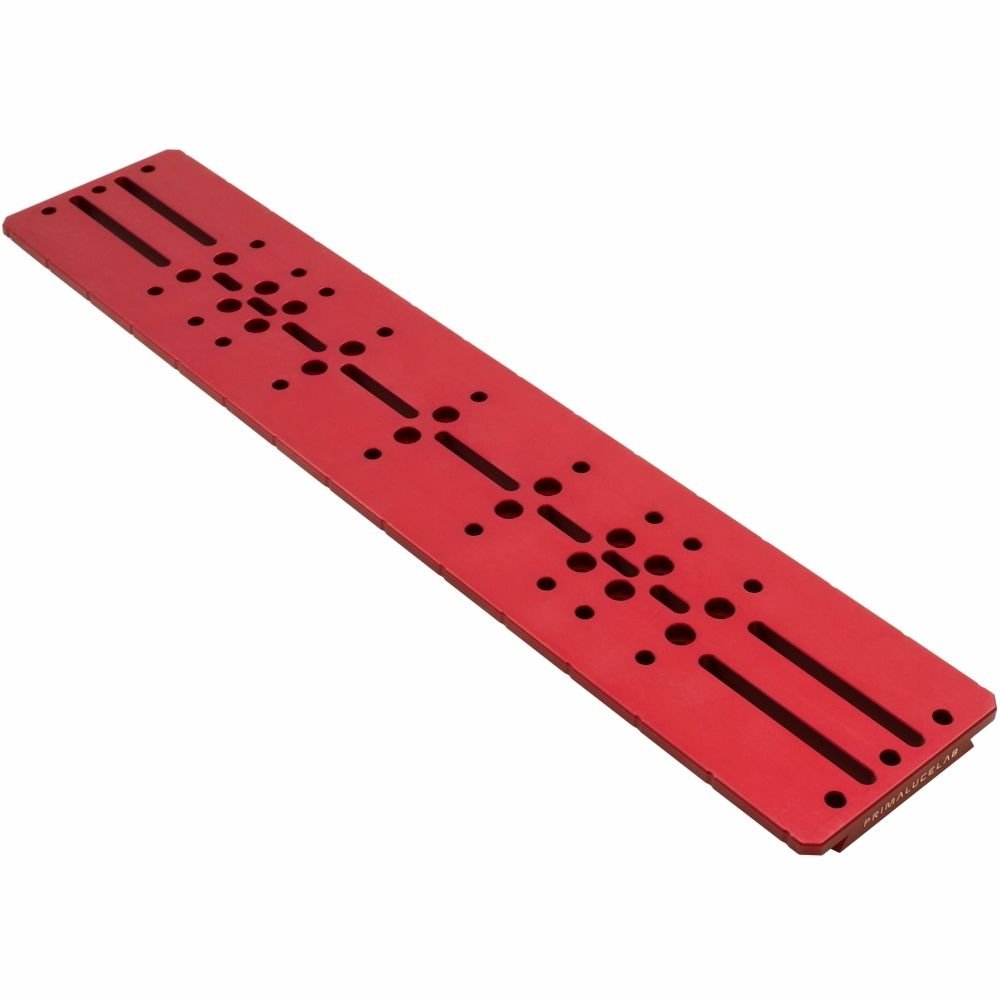

Losmandy style dovetail plate 495mm PLUS


The Losmandy style dovetail plate 495mm PLUS is designed to let you install your telescopes on mounts with this connection. This dovetail plate is 495mm long and is useful for installing large dimensions telescopes (such as Newton up to 300mm in diameter) on mounts with Losmandy plate (as the SkyWatcher AZ-EQ6, or EQ8). Like all the elements of the PLUS system, this plate is made with high precision mechanics (built with CNC machines from aluminum block) and specially designed to enable you to easily install other mechanical components such as support rings, guide rings or dovetail clamps. Weight: 1.2 kg.


We do not ship PrimaLuceLab products to USA, you can order to one of our USA dealers.


The Losmandy style dovetail plate 495mm PLUS is part of our PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.

For this application, we designed many elements, including the Losmandy style dovetail plate 495mm PLUS. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.

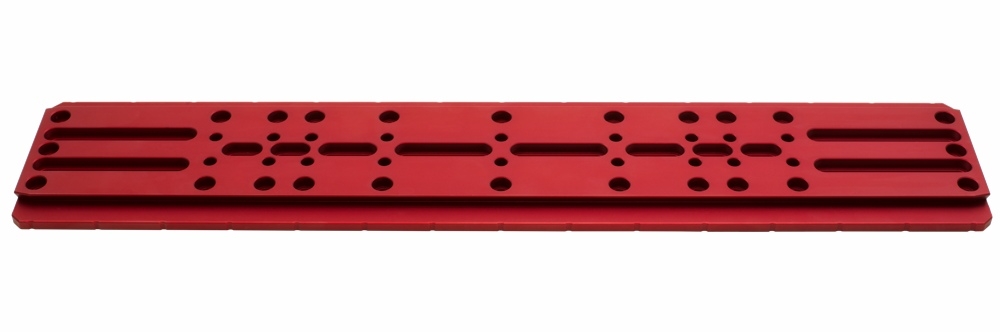

Losmandy style dovetail plate 495mm PLUS

Thanks to the particular design, the Losmandy style dovetail plate 495mm PLUS can be:

  1. positioned below the support rings to install the telescope on mounts with Losmandy plate
  2. installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as guide rings to precisely adjust the position of the guide telescope).
  3. used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single Losmandy plate) together with 2 dovetail clamps PLUS.

If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed we have provided a series of central slots that allow, for example, to fix on this plate support or guide rings through a screw.

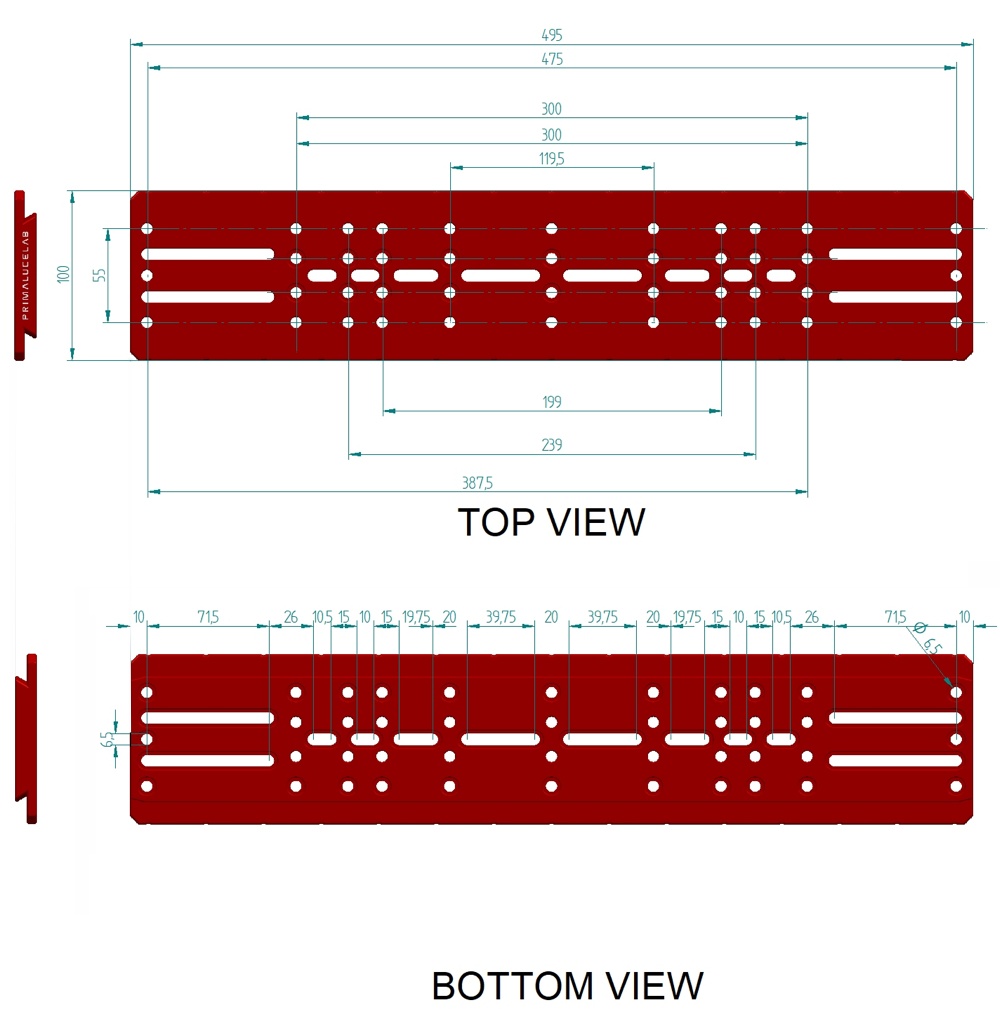

Losmandy style dovetail plate 495mm PLUS



Losmandy® is registered trademark of Hollywood General Machining, Inc.

EAN code


1 Reviews

Prodotti PRIMALUCELAB: una garanzia
Magari si potrebbe pensare ad una comunissima Barra Losmandy.. e invece no! Già la scatola che la contiene non può che confermare la cura e l'attenzione che PrimaLuceLab rivolge ai suoi prodotti. Appena presa in mano poi si avverte subito una sensazione di robustezza e attenizone ai dettagli: comodissimi i vari fori passanti e filettati, nonché le varie asole che la rendono versatile per qualsiasi esigenza di utilizzo.
Io l'ho insallata sul mio Newton 12" f/5, ed è stato subito evidente il miglioramento nella stabilità.
In ultimo, non da trascurare: difficile trovare sul mercato barre losmandy di queste dimensioni; di sicuro non si trovano a questo prezzo! Altro punto a favore del prodotto!

Di nuovo un sentito GRAZIE a tutto lo staff per aver confermato un'altra volta la loro eccellenza nel settore.

Dario Gozzini
